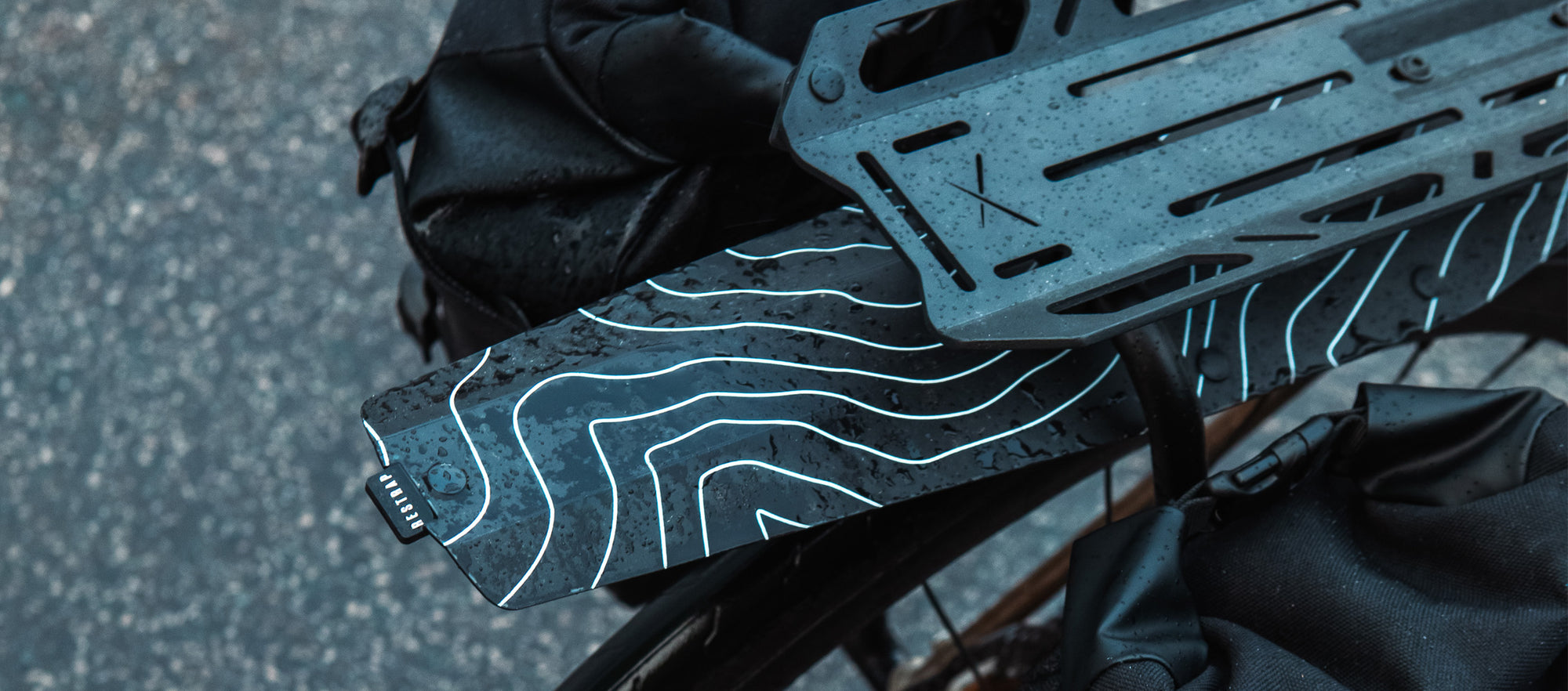

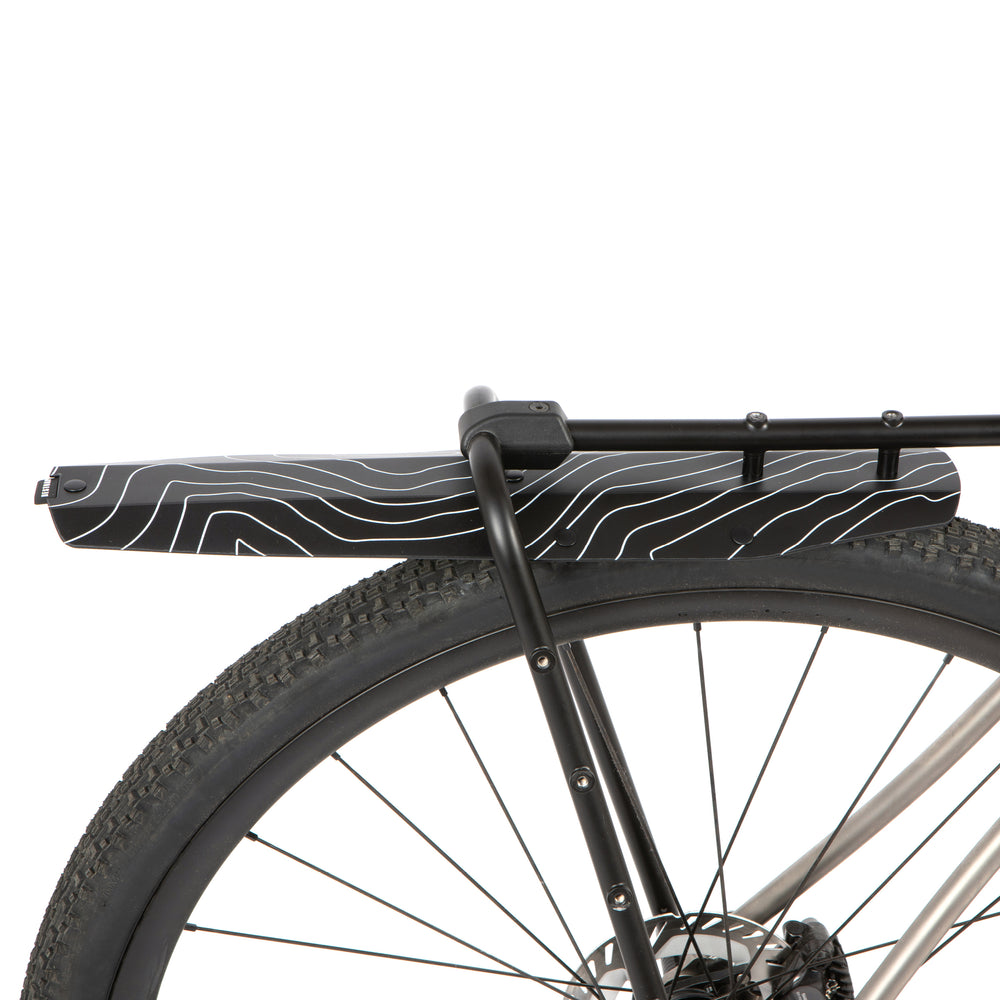

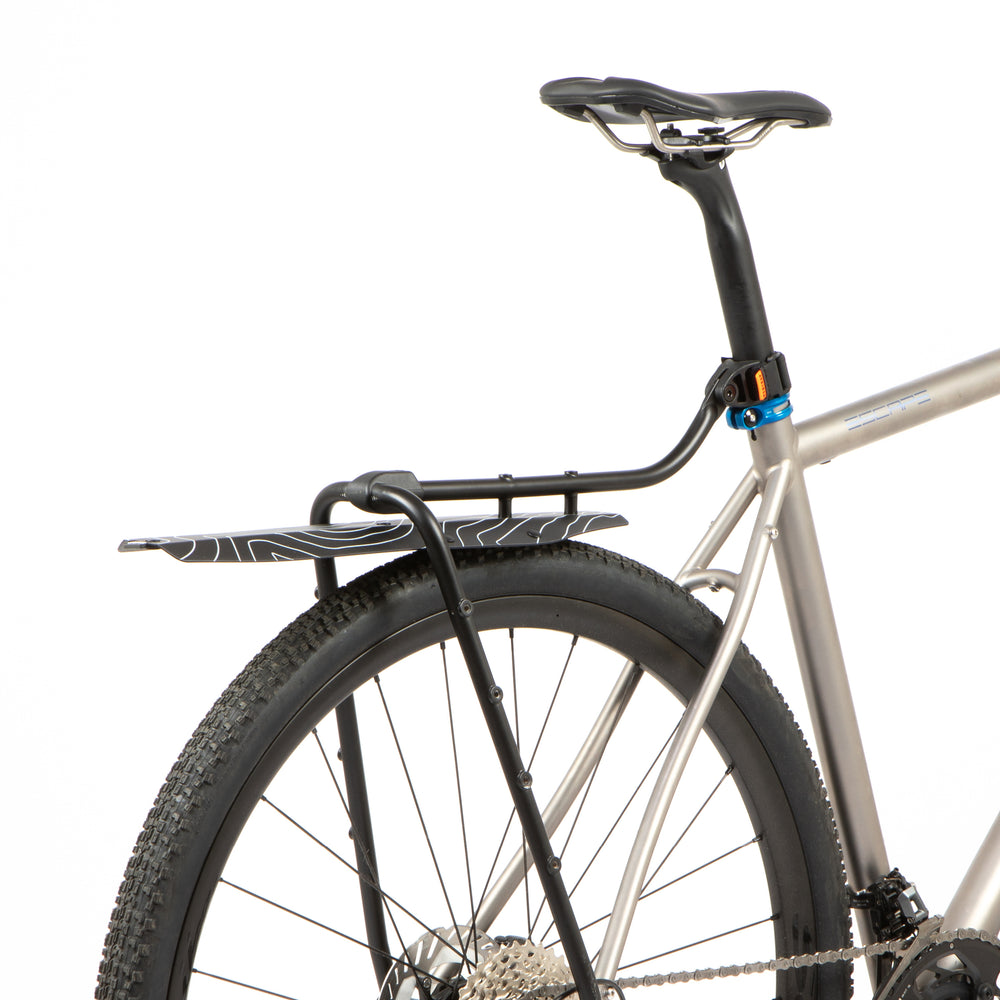

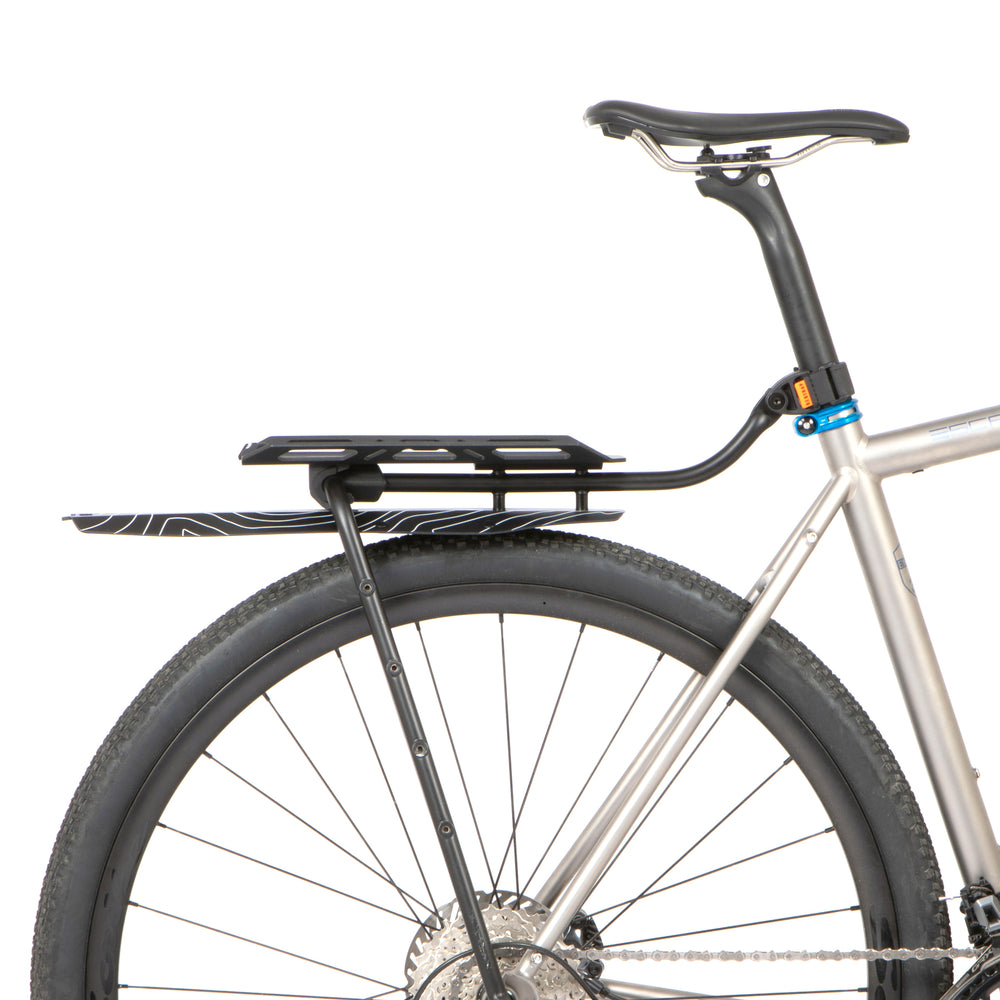

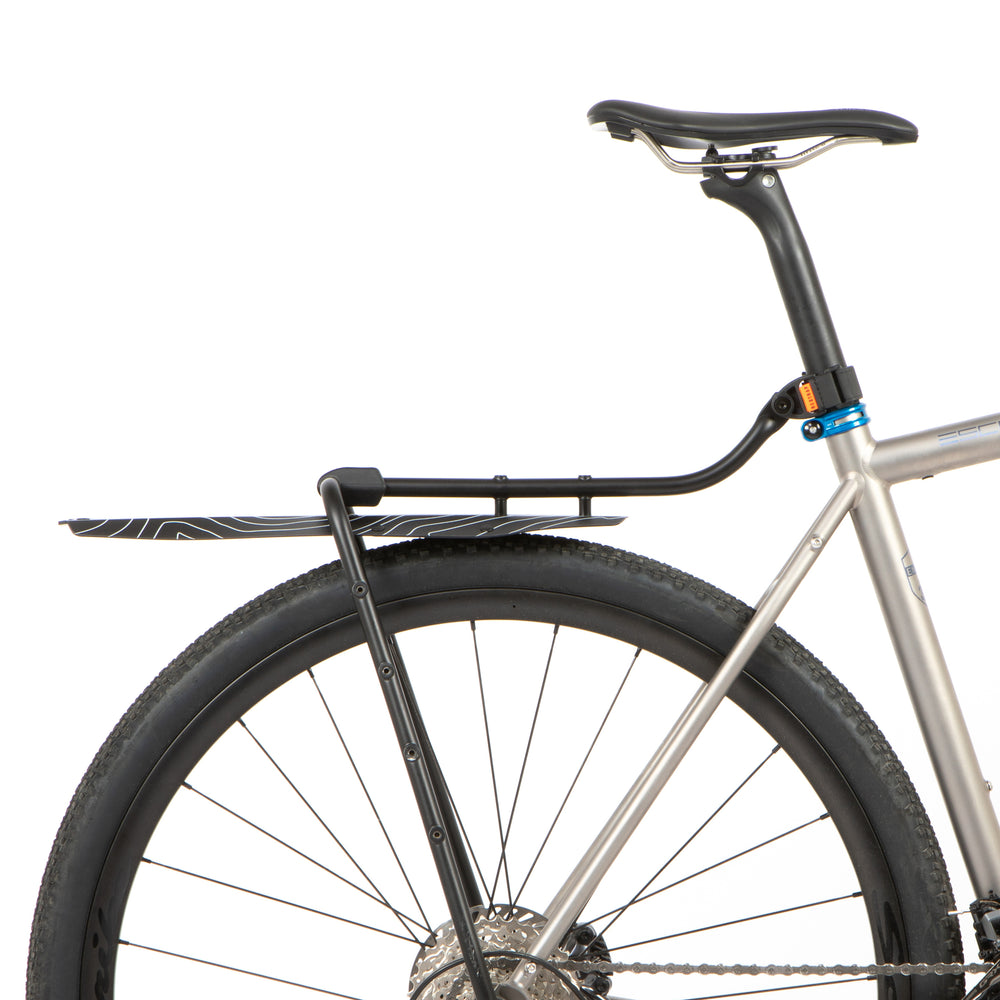

Featuring the distinctive Restrap ‘contours’ pattern and a discrete logo tab, the Switch Rack Rear Mudguard is otherwise a perfect fit-and-forget addition, perfect for wet conditions, but useful all year round.

Instructions for use -

Design only for use with the Restrap Switch Rack. We cannot guarantee compatibility with any other racks.
For ease of installation, remove the Switch Rack seat post strap so you can reach the bosses on the underside of the top bar.

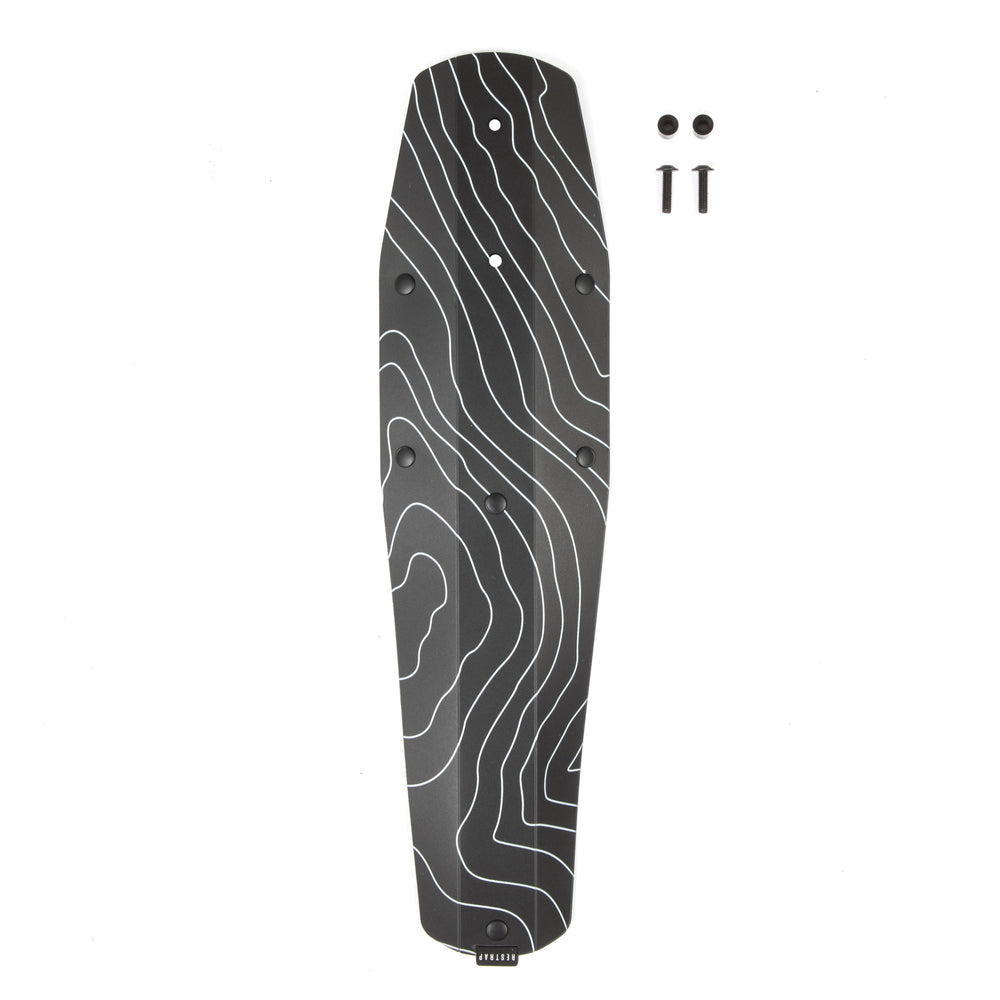

Slot the M5 bolts from the underside of the mudguard through to the printed face.
The rubber Restrap label should be at the rear.
Slide on a Nylon spacer over each M5 bolt.
Although not essential, we recommend applying a small amount of threadlock to the threads of each bolt.
The threaded section should be sticking out from the printed face of the mudguard.
Lightly thread the M5 bolts into the underside of the switch rack top bar, initially by hand.
Once positioned, tighten the bolts using a 4mm hex key to a max 5Nm.

Clearance -

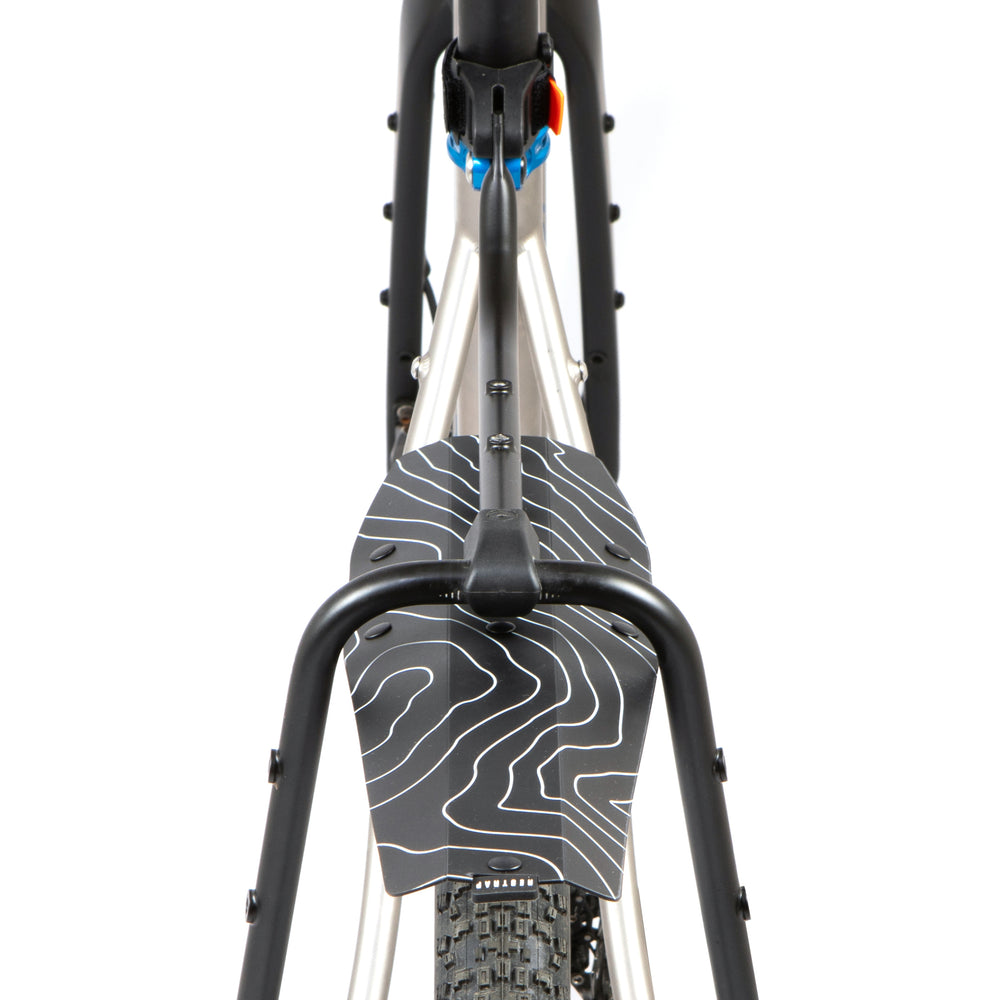

The mudguard has clearance for a maximum wheel + tyre combination of 29” x 3.0”
